Intelligent Weighing Technology · High Precision Laboratory Balances
Intelligent Weighing Technology PM-100 Precision Laboratory Balance
Model: PM-100
Shipping calculated at checkout. Secure checkout.
Need help choosing? Contact Packrift →Intelligent Weighing Technology PM-100 is a precision laboratory balance with a 100 g capacity and 0.001 g readability.
Consider this balance for laboratory sample preparation, formulation and comparison weighing when the stated capacity and readability match the job. Check your largest vessel as well as the smallest change in mass your procedure needs to display.

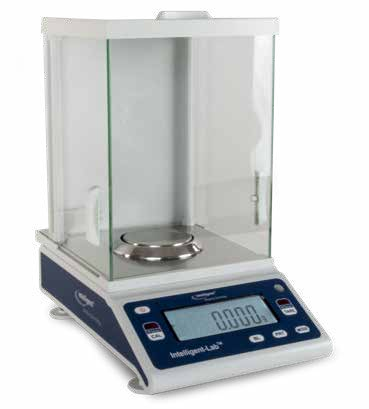

Small-pan laboratory configuration
The PM series combines a round pan, a draft shield and RS232 connectivity. The stated 9.5” draft-shield height is useful when comparing the configuration with your sample vessels.
Specifications
| Capacity | 100 g |
|---|---|
| Readability | 0.001 g |
| Pan size | 3.2” Ø |
| Communications | RS232 |
| Draft shield | Yes |
| Draft shield dimensions | 9.5” height |
| Power source | AC/DC external power adapter |
| Weighing units | g, oz, ct, Lb, GN, ozt, dwt |
| Washdown rating | Not rated |
| Underweigh | No |
Readability describes the displayed increment, so compare that figure with your method rather than using the maximum capacity alone. Consider capacity, pan dimensions and the available interfaces together.
Use the specifications above to compare this model with the load, container dimensions and measurement increments required by your procedure. Check optional configurations separately when selecting connections or power arrangements.
