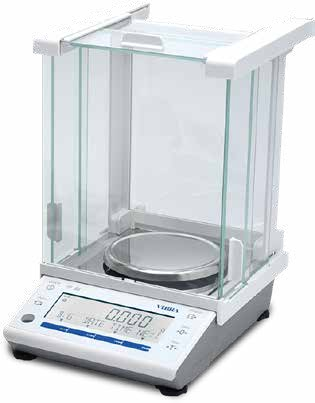

Series image. Refer to the specifications for this model.
Vibra · High Precision Laboratory Balances
Vibra ALE-623 Precision Laboratory Balance
Model: ALE-623
Shipping calculated at checkout. Secure checkout.
Need help choosing? Contact Packrift →Vibra ALE-623 is a precision laboratory balance with a 620 g capacity and 0.001 g (NTEP Class II 0.01g) readability.
Consider this balance for laboratory sample preparation, formulation and comparison weighing when the stated capacity and readability match the job. Check your largest vessel as well as the smallest change in mass your procedure needs to display.
Tuning-fork weighing technology
The ALE series uses tuning-fork weighing technology. This configuration includes a draft shield around the pan, plus RS232 and USB-B device connections for a compatible workstation.
Specifications
| Capacity | 620 g |
|---|---|
| Readability | 0.001 g (NTEP Class II 0.01g) |
| Pan size | 4.65” Ø |
| Communications | RS232, USB-B device |
| Draft shield | Yes |
| Draft shield dimensions | 7.8” height |
| Power source | AC/DC external power adapter |
| Weighing units | g, (mg), (kg), ct, Lb, oz, ozt, GN, dwt |
| Washdown rating | Not rated |
| Underweigh | Standard: no; optional: yes |
Readability describes the displayed increment, so compare that figure with your method rather than using the maximum capacity alone. Consider capacity, pan dimensions and the available interfaces together.
Use the specifications above to compare this model with the load, container dimensions and measurement increments required by your procedure. Check optional configurations separately when selecting connections or power arrangements.
