UWE/IWT · Industrial Bench Scales

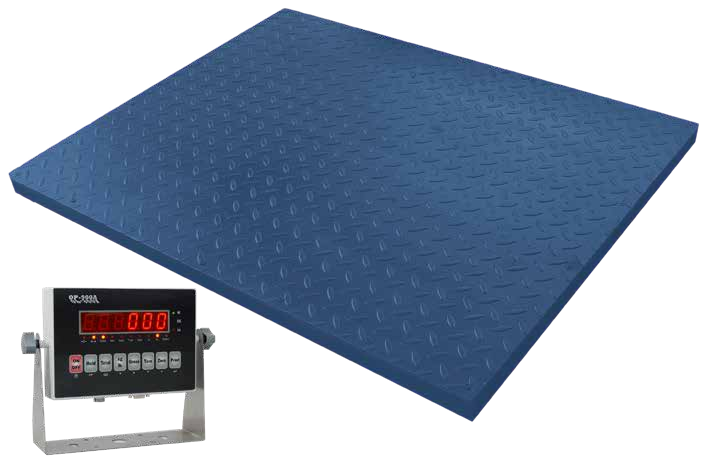

UWE/IWT TitanF Series Floor Scales
The UWE/IWT TitanF series provides a low-profile alloy-steel platform for heavy floor-weighing tasks. Choose a 4 × 4-foot or 5 × 5-foot platform, each offered in 5,000 lb and 10,000 lb capacities.
The UWE/IWT TitanF series provides a low-profile alloy-steel platform for heavy floor-weighing tasks. Choose a 4 × 4-foot or 5 × 5-foot platform, each offered in 5,000 lb and 10,000 lb capacities.
- 1 lb displayed increments on 5,000 lb models; 2 lb on 10,000 lb models.
- RS232 communication and AC power.
- Pound and kilogram weighing.
Select the platform size for the load footprint, then choose the capacity for the full loaded weight. The catalog lists no washdown rating, so match the installation environment to that limitation.
Selected model specifications
TitanF 5K
| Platform material | Alloy steel |
|---|---|
| Communications | RS232 |
| Weighing units | lb, kg |
| Features | Low profile |
| Washdown rating | None |
| Power source | AC power |
| Underweigh | No |
| Capacity | 5,000 lb |
| Readability | 1 lb |
| Platform size | 4' x 4' |
| Divisions | 5,000 |
Readability is the displayed weight increment, not a statement of weighing accuracy.
Compare TitanF models
Choose the capacity and displayed increment that fit your items and containers.
| Model | Capacity | Readability | Platform / pan | Price |
|---|---|---|---|---|
| TitanF 5K | 5,000 lb | 1 lb | 4' x 4' | $1,372.00 |
| TitanF 10K | 10,000 lb | 2 lb | 4' x 4' | $1,372.00 |
| TitanF 55 5K | 5,000 lb | 1 lb | 5' x 5' | $1,764.00 |
| TitanF 55 10K | 10,000 lb | 2 lb | 5' x 5' | $1,764.00 |
